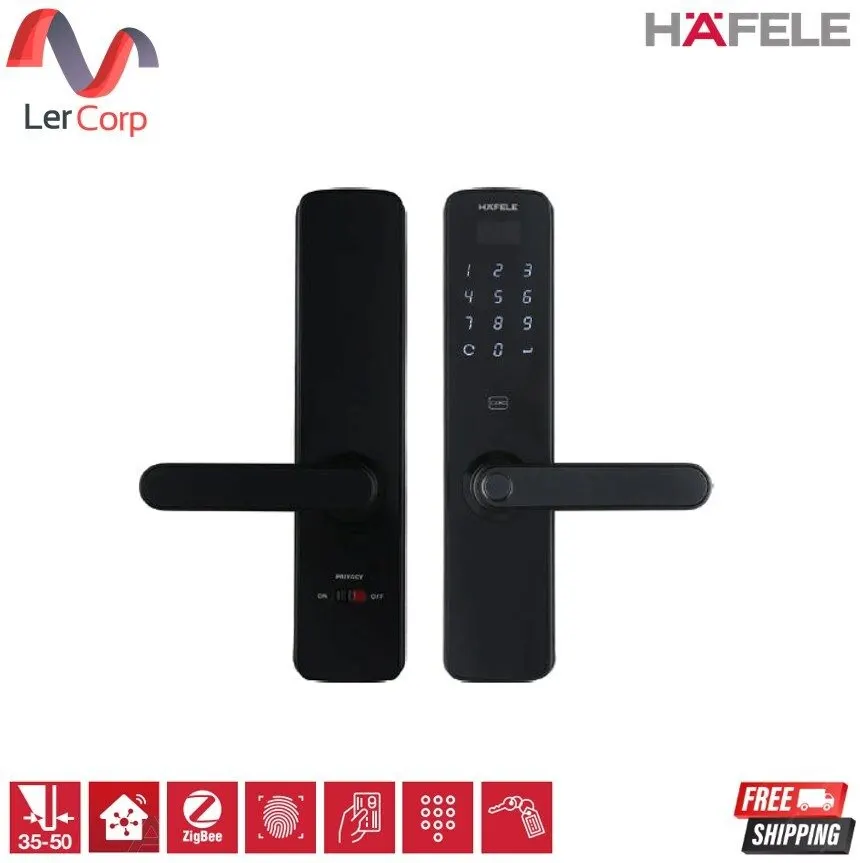

HAFELE DIGITAL DOOR LOCK SET DL 7100Product Code 499.21.192
Features- 5 unlock methods
- Remote unlock via Häfele Smart Living application (ZigBee module sold separately)
- Key card storage up to 50 cards (Mifare and Rabbit cards)
- Password storage up to 50 combinations (6-16 digit codes)
- Fingerprint storage up to 100 fingerprints
- Mechanical key for emergency opening
- High security mortise lock
- Setting menu displayed on OLED screen (English and Thai language selectable)
- Touch-sensitive numeric keypad
- Passage mode available
- Random password input function
- Low battery alert and intrusion warning function
- Anti-theft system
- Low battery alert and intrusion warning function
- Suitable for left and right-opening doors
- Suitable for doors 35-50 mm thick
Dimensions (W x H x D):
- Exterior module: 64 x 283 x 27 mm
- Interior module: 64 x 283 x 27 mm
- High security mortise lock: 80 x 240 x 24 mm (backset 60 mm)
Includes:
- 1 set of exterior and interior modules
- 1 mortise lock and striking plate
- 1 set of mounting hardware
- 2 key cards, 2 key tag cards
- 2 mechanical emergency keys
- User manual
- Installation guide
- 1 drilling template
DIGITAL DOOR LOCK DL 7100Features
- 5 identificated types:
- Remote unlock via Häfele Smart Living application (Optional)
- Up to 50 key cards/tags (Mifare and Rabbit Cards)
- Up to 50 passwords (6-16 digits combination)
- Up to 100 fingerprints
- Mechanical key override
- High security mortise lock
- Setting menu via OLED display screen (English and Thai language)
- Digital touchpad design
- Passage mode available
- Random security coding function
- Low battery power alert and intrusion warning function
- Mischief and hacking prevention system
- Micro USB emergency power supply
- Suitable for DIN left and DIN right
- Suitable for door leaf thickness 35–50 mm
Dimension (W x H x D):
- Ext. module: 64 x 283 x 27 mm
- Int. module: 64 x 283 x 27 mm
- High security mortise lock: 80 x 240 x 24 mm (backset 60 mm)
Supplied with:
- 1 Ext. and int. module, 1 Mortise lock, and striking plate
- 1 Set of fixing material, 2 Key cards
- 2 Key tags
- 2 Mechanical keys
- 1 User manual
- Installation guide and drilling template
- ZigBee module and ZigBee Gateway can be purchased separately for additional connectivity
**Digital door lock set with 3-year warranty (accessories not included)
***Free installation in Bangkok and surrounding areas (other provinces have additional charges)
****For inquiries call 02 768 7171 ext. 2
