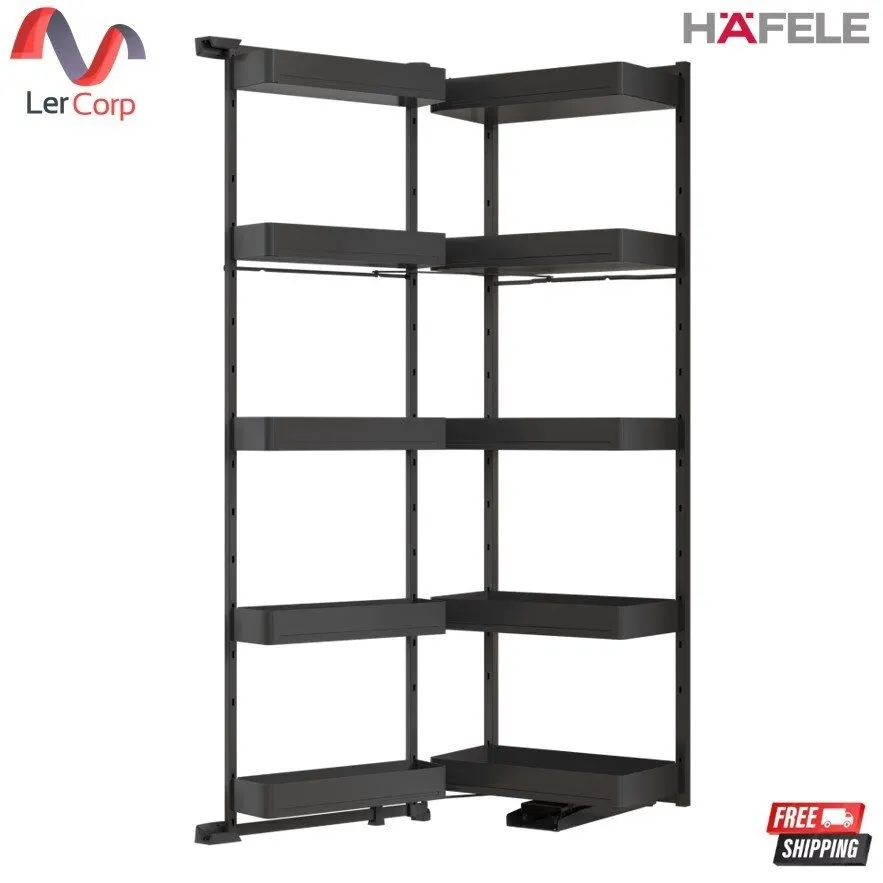

HAFELE UTENSIO PLUS Swing Open Cabinet Set
504.68.382 Size 405x482x1700 mm. For cabinet width 450 mm.
Product Information
• Material: Steel/Plastic
• Color: Anthracite
• Load capacity: 70 kg
• Minimum internal cabinet height: 1,700 mm
• Minimum internal cabinet depth: 500 mm
• Minimum internal cabinet width: 412 mm for cabinet width 450 mm,
• 562 mm for cabinet width 600 mm
• Side panel thickness: 16-19 mm
- Supplied with
• 1 frame set, 1 runner set with soft close mechanism,
• 10 baskets, front brackets. Installation manual, drilling template and fixing screws
- Ordering Notes
• Please order overlay hinges with soft close mechanism separately
• At least 6 pieces for installation behind hinged door per hinge
Product specification
• Material: Steel/plastic
• Finish: Anthracite
• Load capacity: 70 kg
• Min. internal cabinet height: 1,700 mm
• Min. internal cabinet depth: 500 mm
• Min. internal cabinet width: 412 mm for cabinet width 450 mm,
• 562 mm for cabinet width 600 mm
• For side panel thicknesses: 16-19 mm
- Supplied with
• 1 pull out frame, 1 runner set with integrated soft closing mechanism,
• 10 baskets, front brackets, installation manual, drilling template and fixing material
-Order reference
• Please order at least 6 pcs. of full overlay, soft close hinges
• for internal pull-out behind hinged door.
