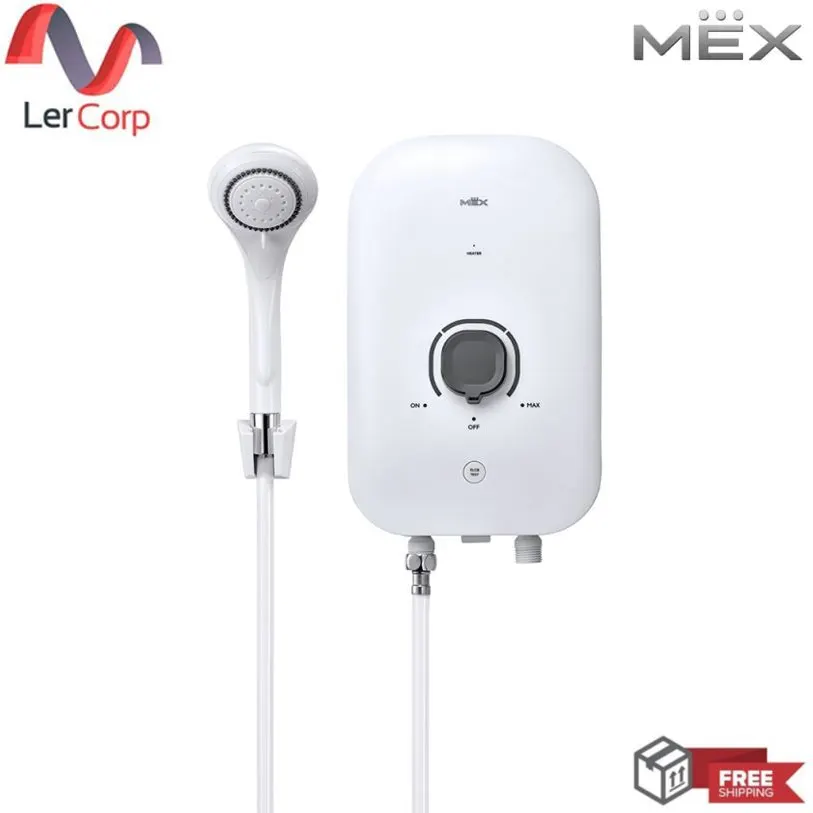

(MEX) Water Heater White COCO S35 (WH)

COCO S Series Water Heater

White water heater with 3,500 watts power rating

Large copper heating tank with 1.0 mm thick body

Uses FLOW SWITCH SENSOR that detects water circulation with fine and accurate precision

ELCB system that cuts power when leakage current is only 15 milliamps within 0.1 seconds

Water protection rating standard IP25

TECHNICAL DATA

Power consumption: 3,500 watts 220V, 50Hz, 15.91 Amp

Wire gauge (sq.mm): 3 x 2.5 sq.mm (THW)

Earth wire connection and circuit breaker control required

Minimum inlet water pressure: 0.2 bar
