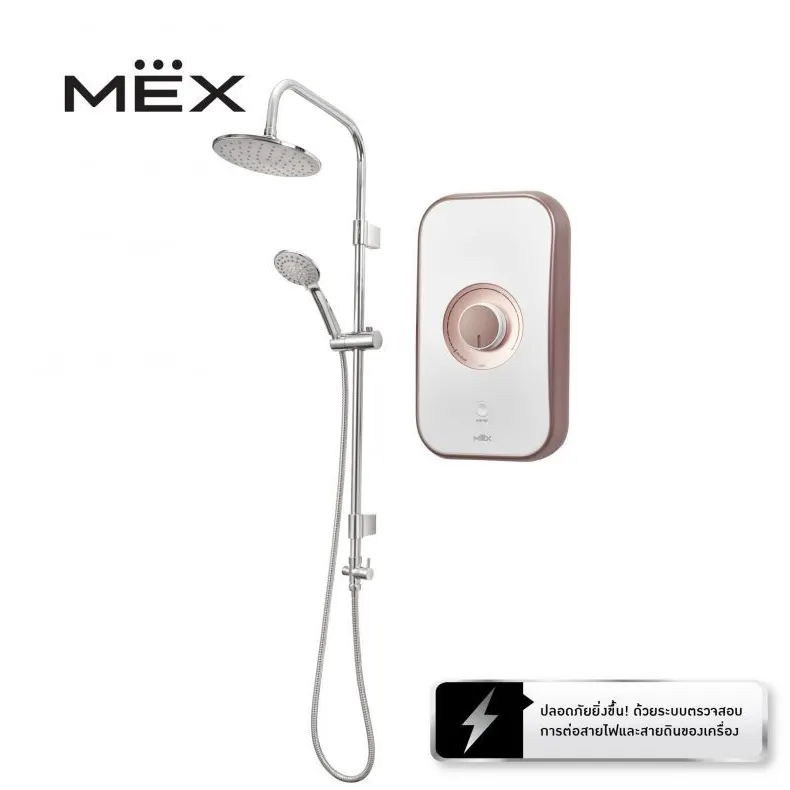

(Mex) MEX Instantaneous Water Heater Model CODE 5E (RCA) with RAIN SHOWER 5100W

PRODUCT FEATURES

Features

5,100 watt instantaneous water heater

Large copper heating tank with 1.0 mm thick walls

Uses HALL SENSOR to detect water flow with precision and accuracy, and operates at lower water pressure

THERMISTER system that quickly and accurately detects water temperature abnormalities

ELCB system that cuts power when leakage current is as low as 15 milliamps within 0.1 seconds

Electrical and earth wire connection verification system for added safety. LED indicator displays green flashing light with alarm sound when power or earth connection is incomplete

Chromium plated rain shower head with rigid arm, adjustable water flow at 3 levels, and includes slide rail

Adjustable temperature settings

2-year product warranty

5-year copper tank warranty

TECHNICAL DATA

Dimensions: Height x Width x Depth: 35.6 x 21.1 x 8.5 cm

Power consumption: 5,100 watts 220V, 50Hz, 23.18 Amp.

Wire size (sq.mm): 3 x 4 (THW)

Earth wire connection and circuit breaker control required
