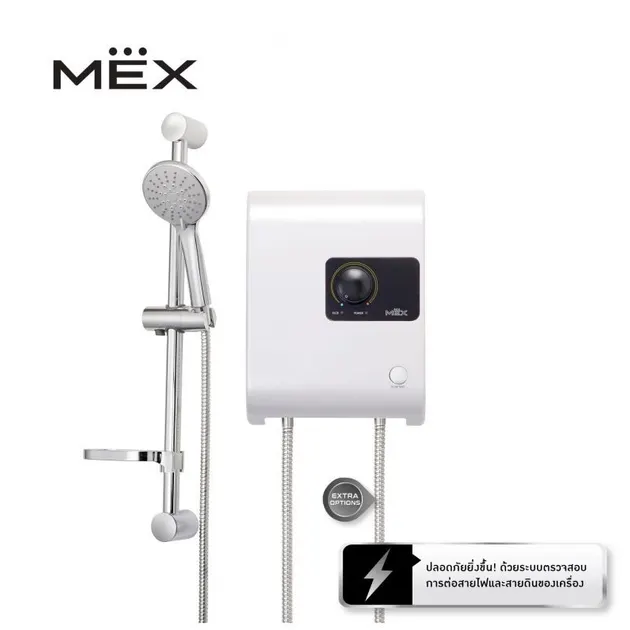

(Mex) MEX Instant Water Heater Model CUBE 5E (RAS) with Rain Shower 5100W

PRODUCT FEATURES

Features

5,100 watt instant water heater.

Large copper heating tank with 1.0 mm thick body.

HALL SENSOR detects water flow with precision and accuracy, operating at lower water pressure.

THERMISTER system quickly and accurately detects abnormal water temperature.

ELCB system cuts power when current leakage is only 15 milliamps within 0.1 seconds.

Electrical connection and grounding verification system for added safety. LED indicator shows green flashing light with sound alert when power or grounding connection is incomplete.

Chromium showerhead with adjustable water flow at 5 levels.

Fixed Rain Shower system with sliding chromium-plated fitting that allows height adjustment.

Adjustable temperature control.

Water inlet valve with adjustable water pressure control.

2-year product warranty.

5-year copper tank warranty.

TECHNICAL DATA

Technical Information

Dimensions: Height x Width x Depth: 29.0 x 22.0 x 9.0 cm.

Power consumption: 5,100 watts 220V, 50Hz, 23.18 Amp.

Wire size (sq.mm): 3 x 4.0 (THW).

Must have grounding connection and breaker control.
