PRODUCT FEATURES
Features

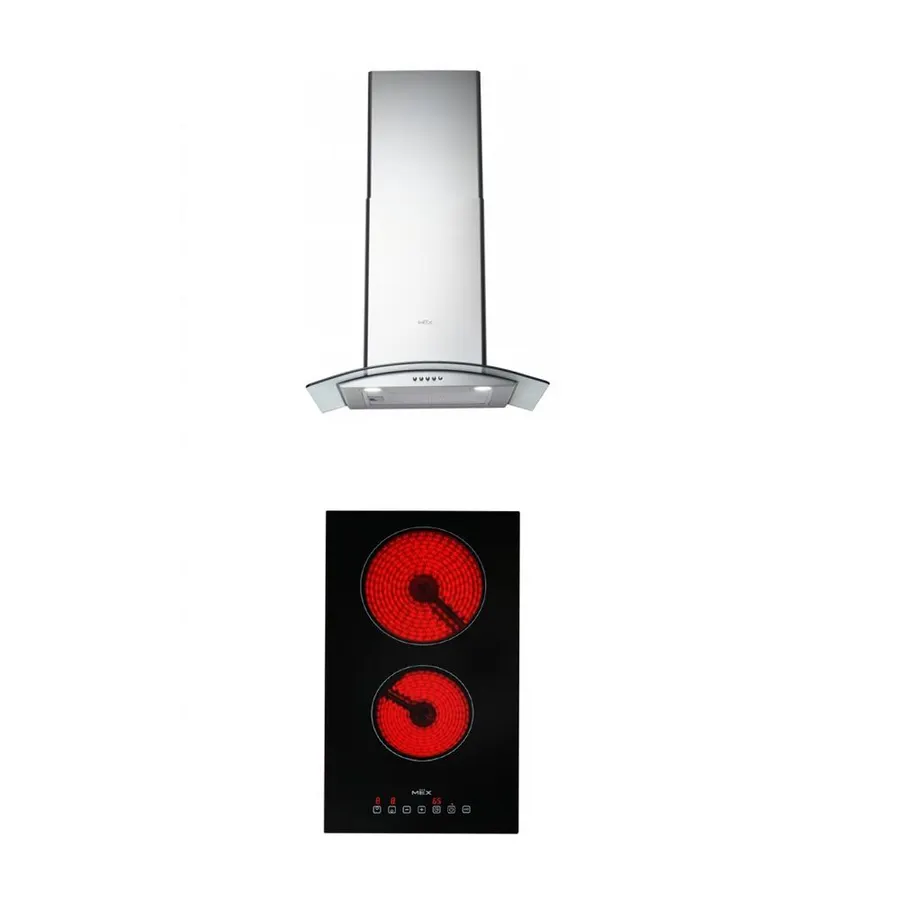

1. Curved glass canopy range hood, 60 cm size
• Range hood motor 280 watts
• Maximum air extraction capacity 850 m³/hr
• Maximum net air extraction 700 m³/hr
• Motor strength adjustable to 3 levels
• LED lighting 2 units (2 x 1.5 watts)
• For external air exhaust system only
TECHNICAL DATA
Technical Data
• Product size: Width x Depth x Height: 59.5 x 47.0 x 52.3 - 97.3 cm
• Power consumption: 283 watts, 220 volts, 50 Hz
• Air duct size ø 150 mm
Product Information
• Product weight: 13.00 kg
• Product weight including packaging: 15.00 kg
• Box size: 64.0 (depth) x 40.0 (width) x 54.5 (height) cm
2. MEX Electric Ceramic Hob Model HVN232
• High quality ceramic glass base
• 2 highlight burners consisting of
Front: Highlight burner size 150 mm, 1,200 watts power
Back: Highlight burner size 185 mm, 1,800 watts power
• Heat level adjustable to 9 levels
• Touch control panel with control panel lock system for safety
• Automatic cooking timer function
• Operation indicator light
• Residual heat warning indicator light
TECHNICAL DATA
Technical Data
Size: Width x Depth x Height: 28.8 x 51.0 x 4.0 cm
Furniture cutout size: Width x Depth: 27.0 x 49.0 cm
Maximum power consumption: 3,000 watts, 220 volts, 50 Hz
Cable size (mm²): 3 x 2.5 (THW)
Grounding and breaker control required
Product weight: 4.80 kg
Product weight including packaging: 5.50 kg
Box size: 56 (depth) x 34.5 (width) x 11 (height) cm
