PRODUCT FEATURES

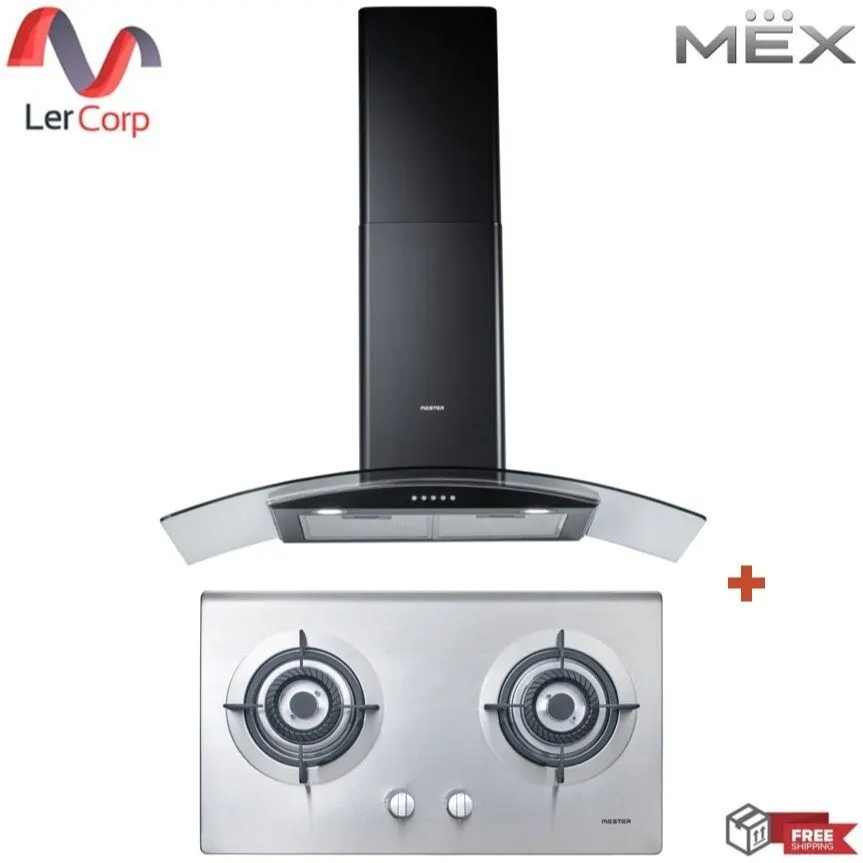

Curved glass canopy range hood, black color, 90 cm size
Range hood motor 220 watts
Maximum total air extraction capacity 770 m³/hour
Maximum net air extraction capacity 720 m³/hour
Extra large 5-layer aluminum filter
• Push button control
• 3-level adjustable strength
• LED lighting 2 units (2 x 2 watts)
• For use with external air extraction system only
TECHNICAL DATA
• Product size: Width x Depth x Height: 90.0 x 50.0 x 56.5 - 104.5 cm
• Power consumption: 224 watts, 220-240 volts, 50 Hz
• Air duct size ø 150 mm
• Product weight: 16.40 kg
• Product weight with packaging: 19.00 kg
• Carton size: 37.0 (width) x 97.0 (depth) x 56.5 (height) cm
PRODUCT FEATURES
• Built-in gas cooktop, 73 cm size
• Stainless steel base
• 2 stainless steel burner heads with black matt finish
- Left: 2-tier flame, 4,800 watts power
- Right: 2-tier flame, 4,800 watts power
• Colored coated steel pan support grate
• Small pan support grate for small cookware 1 piece
• Metal knob control
• Automatic electronic gas ignition system using flashlight batteries, size D 1 x 1.5 Volt
• Automatic safety valve gas shutoff system
TECHNICAL DATA
• Product size: Width x Depth: 73.0 x 42.0 cm
• Furniture cutout size: Width x Depth: 65.0 x 35.0 cm
• Must be used with low pressure regulator head (37 millibar) only
• Carton size: Width x Depth x Height: 78.0 x 45.5 x 19.5 cm
• Product weight: 6.40 kg
• Product weight with packaging: 7.80 kg
