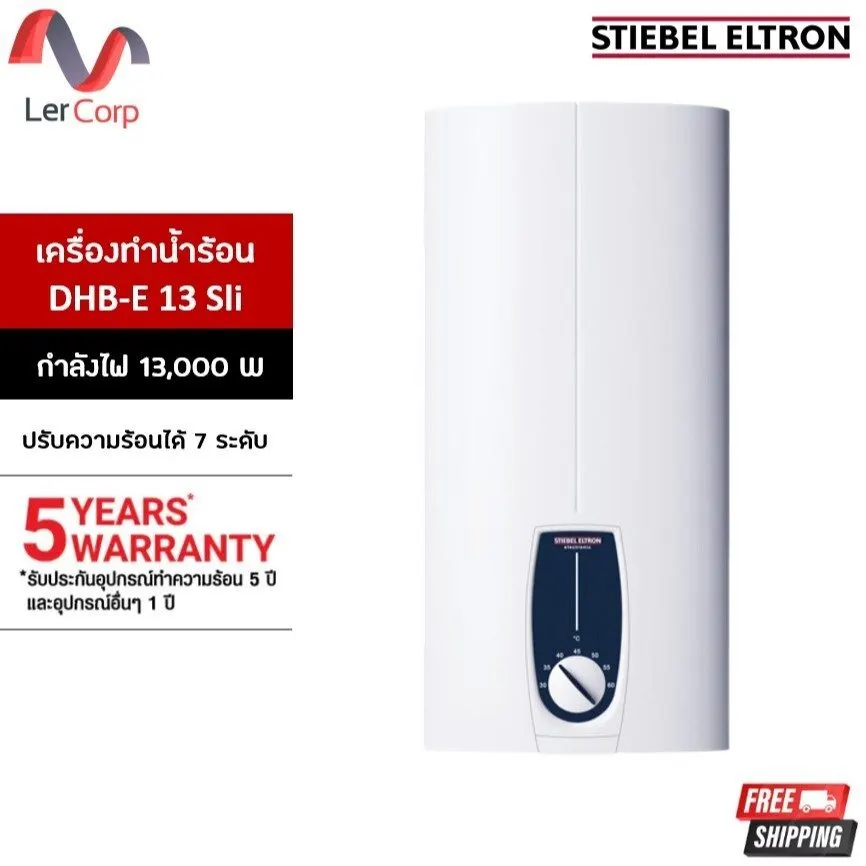

Product DetailsSTIEBEL ELTRON Instantaneous Water Heater 13000 Watts Model DHB-E 13 SLi (Made in Germany) Bare Wire Heating Element 3-Phase System 7 Heat Level Settings
Product Features
> Imported from Germany
> 7 adjustable heat level settings
> Bare Wire heating element provides rapid heating and safe operation
> Multi-point instantaneous water heater with hot and cold water outlet pipes that can be connected to multiple points such as wash basin, bathtub, or shower
> Temperature can be adjusted from 30 – 60 degrees Celsius as desired
> Water pressure compensation system ensures appropriate pressure and maintains constant temperature
> Enhanced safety with design that prevents water infiltration around the unit to IP 25 standard
> 3-Phase electrical system
> Water heater controlled by electronic system
> Temperature can be adjusted precisely as needed for maximum performance with 3i technology
> For hot water supply to one or multiple water outlet points
> Hot water scald prevention system activated at all times for higher safety
> Operation controlled by knob from the front
> Suitable for soft and hard water
> Select desired temperature precisely in the settings menu
Technical Data
- Product Number: 232014
- Nominal Voltage: 400 V
- Nominal Voltage 1: 380 V
- Nominal Voltage 2: 400 V
- Nominal Voltage 3: 415 V
- Power: 13.5 kW
- Rated Power 1: 12.2 kW
- Rated Power 2: 13.5 kW
- Rated Power 3: 14.5 kW
- Rated Current: 19.5 A
- Rated Current 1: 18.5 A
- Rated Current 2: 19.5 A
- Rated Current 3: 20.2 A
- Protection: 20 A
- Protection 1: 20 A
- Protection 2: 20 A
- Protection 3: 20 A
- Frequency: 50/60 Hz
- Frequency 1: 50/60 Hz
- Frequency 2: 50/60 Hz
- Frequency 3: 50/- Hz
- Phase: 3/PE
- Protection (IP): Other
- Temperature Setting: 30-60 °C
- Color: White
- Height: 478 mm
- Width: 225 mm
- Depth: 105 mm
- Weight: 3.60 kg
