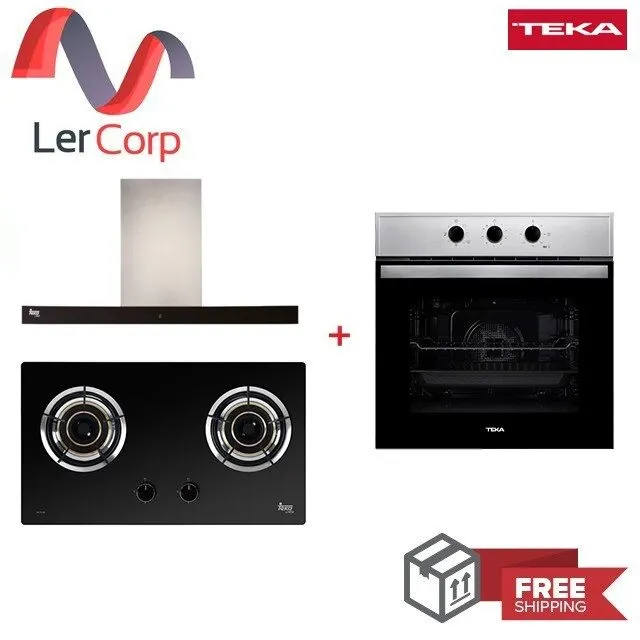

Wall-mounted pyramid cooker hood, 90 cm size
● Dual motor fan with 3-speed settings
● Touch control panel with display screen
● Extraction capacity 1,200 m³/cm
● 2 LED lights and metal mesh filters
● Easy to clean
1-year warranty
Maintenance and precautions
- Always turn off the switch before cleaning and wait for the cooker hood to cool down completely
- Do not clean by directly spraying water as this may cause electrical short circuit hazards
- Clean by wiping with a cloth or sponge dampened with cleaning solution, then wipe again with a damp cloth and dry thoroughly. Do not use abrasive brushes or acidic cleaning solutions as they may cause internal damage
Multifunction oven
8 cooking programs
Hydroclean® ECO cleaning system
Enameled interior prevents food and grease buildup
Energy efficient grade A
Capacity: 71/70 liters
Control knobs
Oven preheating program
Double-glazed glass door, removable for cleaning
Full glass inner door panel for easy cleaning
Slide-down heating element for easy cleaning
Dynamic air circulation system
Interior dimensions
Interior height (mm): 364
Interior width (mm): 475
Interior depth (mm): 402
Net capacity (liters): 70
Gross capacity (liters): 71
Overall dimensions
Product height (millimeters): 595
Product width (millimeters): 595
Product depth (millimeters): 537+22
Net weight (kg): 28
Specifications
Energy Efficiency Index (EEI): 89.3
Energy consumption per cycle in normal mode (kWh): 0.84
Number of cavities: 1
Energy consumption per cycle in forced convection mode (kWh): 0.75
Stainless steel fingerprint resistant: Yes
Minute minder alarm: Yes
Chromium guide tray (levels): 5
Removable chromium double handle tray: Yes
Cooking functions: 8
Grill: Yes
Bottom: Yes
Eco-friendly: Yes
Quick heat up: Yes
Interior light power consumption (w): 25
Electrical connection
Frequency (Hz): 50/60
Voltage (V): 220-240
Cable connection length (cm): 110
Maximum rated power (w): 2615
Power consumption
Bottom heating element (w): 1150
Fan motor ventilation (w): 18
Maximum power: 2550
Multifunction turbo (w): 22
Grill (w): 1400
Maxi grill (w): 2500
Safety systems
Grill guard: Yes
Thermal safety: Yes
End stop tray system: Yes
Cleaning system
Eco-friendly Hydroclean: Yes
Accessories
Baking tray: 1
Deep tray (50 millimeters): 1
Standard grid: 1
Energy efficiency
Energy efficiency grade: A
• Crystal glass gas hob 2 burner 73 cm
• Knob control panel, black color
• Cast iron pan support grid
• Automatic battery ignition
• Automatic gas shutoff safety system
• Cooking area 2 sections:
• 2 dual flame burners (4.2 kilowatts)
• Maximum total power 8.4 kilowatts
