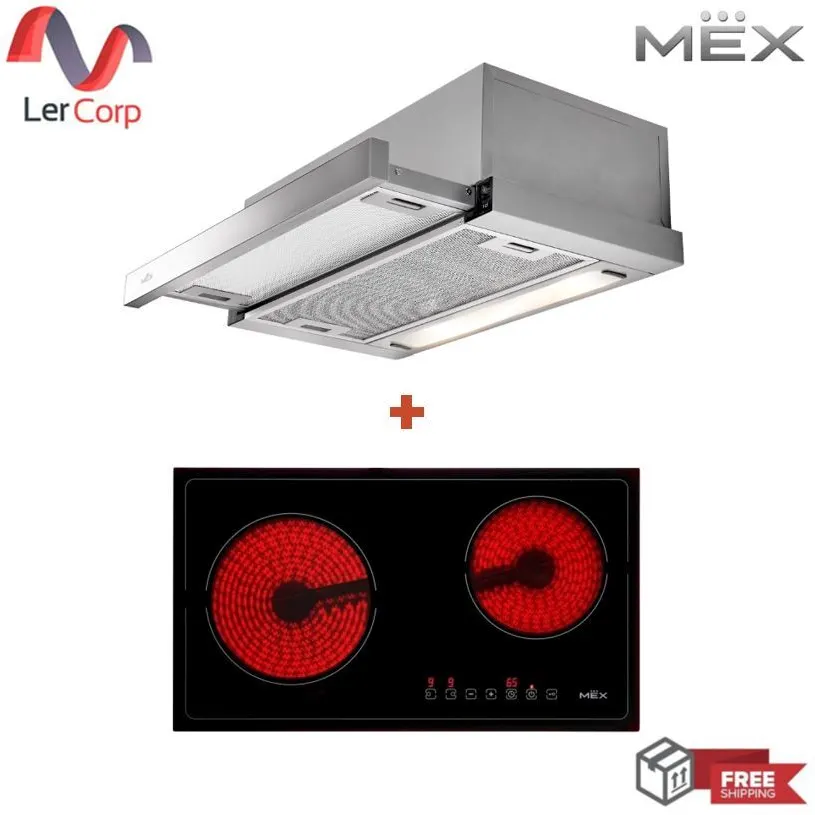

1. MEX SL26 Slim Line Range Hood
PRODUCT FEATURES
• Slim line range hood, 60 cm size
• 125 watt extraction motor
• Maximum total air extraction capacity 520 m³/hour
• Maximum net extraction capacity 450 m³/hour
• 2-level motor strength adjustment
• 2 lighting bulbs (2 x 40 watts)
TECHNICAL DATA
• Product dimensions: Width x Depth x Height: 59.8 x 28.0 x 18.0 cm
• Power consumption: 145 watts, 220 volts, 50 Hz
• Uses Ø 125 mm air duct
Product Information
• Product weight: 7.40 kg
• Product weight with packaging: 8.60 kg
• Box dimensions: 66.0 (width) x 25.0 (depth) x 39.0 (height) cm
2. MEX HVH632N Ceramic Base Electric Cooktop
PRODUCT FEATURES
Features
• High-quality ceramic glass base
• Touch control panel
• 2 cooking zones consisting of:
- Left: 186 mm size, 1,800 watts power
- Right: 155 mm size, 1,200 watts power
• 9-level heat adjustment
• Cooking timer 1-99 minutes, independent for 2 zones
• "U" function for keeping food warm
• "A" function to boost heat to maximum and return to set level
• "H" symbol alerts when cooking zone still has residual heat
• Control panel child lock for safety
TECHNICAL DATA
Technical Information
• Product dimensions: Width x Depth x Height: 51.0 x 28.8 x 4.3 cm
• Furniture cutout size: Width x Depth: 49.0 x 27.0 cm
• Maximum power consumption: 3,000 watts, 13.64 amps
• Wire size (mm²): 3 x 2.5 (THW)
• Must be grounded and have a circuit breaker control
Product Information
• Product weight: 6.00 kg
• Product weight with packaging: 7.00 kg
• Box dimensions: 33.5 (depth) x 55.5 (width) x 14.0 (height) cm
