PRODUCT FEATURES
Features

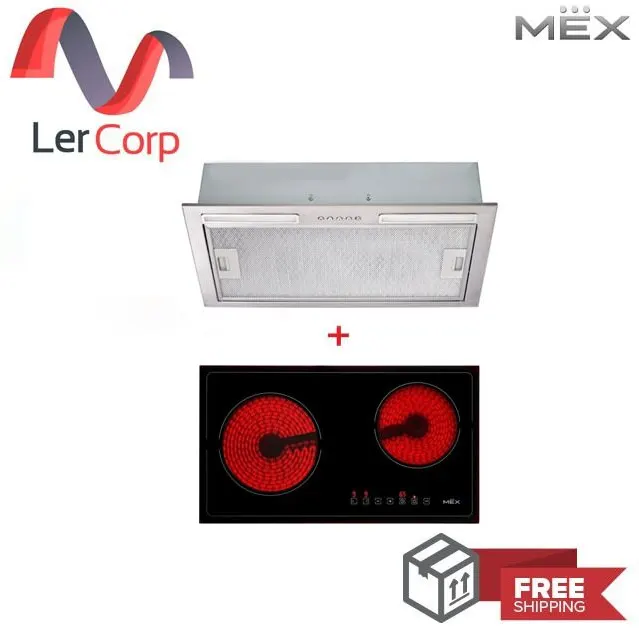

1.MEX Ceramic Base Electric Cooktop Model HVH632N
• High-quality ceramic glass base
• Touch control panel
• 2 cooking zones comprising:
- Left: 186 mm size, 1,800 watts power
- Right: 155 mm size, 1,200 watts power
• 9 adjustable heat levels
• Cooking timer 1-99 minutes, independently adjustable for 2 zones
• "U" function for food warming
• "A" function for maximum heat boost and return to set level
• "H" symbol alerts when cooktop zone is still hot
• Control panel lock system for safety
TECHNICAL DATA
Technical Information
• Product dimensions: Width x Depth x Height: 51.0 x 28.8 x 4.3 cm
• Furniture cutout size: Width x Depth: 49.0 x 27.0 cm
• Maximum power consumption: 3,000 watts, 13.64 amperes
• Wire size (sq.mm): 3 x 2.5 (THW)
• Requires grounding and circuit breaker control
Product Information
• Product weight: 6.00 kg
• Product weight including packaging: 7.00 kg
• Box dimensions: 33.5 (depth) x 55.5 (width) x 14.0 (height) cm
2.Built-in Cooker Hood 54 cm
• Extraction motor 155 watts
• Maximum total air extraction 550 m³/hour
• Maximum net air extraction 480 m³/hour
• Electronic push buttons
• 3 adjustable motor speed levels
• Large aluminium filter panel
• LED lighting 2 lamps (2 x 1 watt)
• External ducting system only
TECHNICAL DATA
Technical Information
• Product dimensions: Width x Depth x Height: 54.0 x 29.0 x 17.5 cm
• Power consumption: 157 watts, 220 volts, 50 Hz
• Uses ø 120 mm ducting
Product Information
• Product weight: 5.50 kg
• Product weight including packaging: 6.50 kg
• Box dimensions: 62.0 (depth) x 38.0 (width) x 25.0 (height) cm
