Features

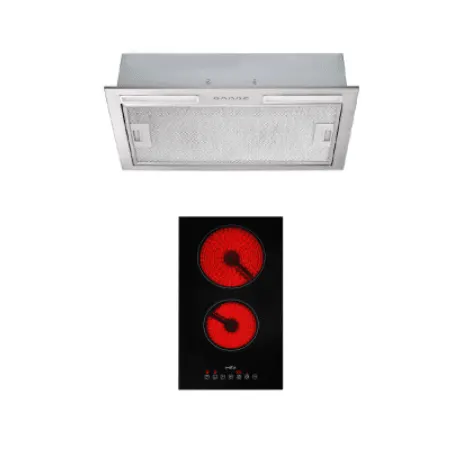

1. Built-in Range Hood, 54 cm Size
• Suction Motor 155 Watts
• Maximum Total Air Extraction Capacity 550 m³/hr
• Maximum Net Suction Capacity 480 m³/hr
• Electronic Push Button Control
• Motor Power Level Adjustable 3 Levels
• Large Aluminum Suction Filter
• LED Lighting 2 Units (2 x 1 Watt)
• For External Air Exhaust System Only
TECHNICAL DATA
• Product Size: Width x Depth x Height: 54.0 x 29.0 x 17.5 cm
• Power Consumption: 157 Watts, 220 Volts, 50 Hz
• Air Duct Size ø 120 mm
Product Information
• Product Weight: 5.50 kg
• Product Weight with Packaging: 6.50 kg
• Box Size: 62.0 (Depth) x 38.0 (Width) x 25.0 (Height) cm
2. MEX Ceramic Glass Electric Cooktop Model HVN632
• High Quality Ceramic Glass Surface
• Touch Control Panel
• 2 Cooking Zones Consisting of:
- Left: 185 mm Size, 1,800 Watts Power
- Right: 150 mm Size, 1,200 Watts Power
• Heat Level Adjustable 9 Levels
• Cooking Timer 1-99 Minutes, Independent Control for 2 Zones
• "U" Function for Keep Warm
• "A" Function to Boost Heat to Maximum and Return to Set Level
• "H" Symbol Alerts When Cooking Zone is Still Hot
• Control Panel Safety Lock System
TECHNICAL DATA
• Product Size: Width x Depth x Height: 28.8 x 51.0 x 5.0 cm
• Furniture Cut-out Size: Width x Depth: 27.0 x 49.0 cm
• Maximum Power Consumption: 3,000 Watts, 13.64 Amperes
• Cable Size (sq.mm): 3 x 2.5 (THW)
• Requires Earth Cable Connection and Circuit Breaker Control
Product Information
• Product Weight: 6.00 kg
• Product Weight with Packaging: 7.00 kg
• Box Size: 33.5 (Depth) x 55.5 (Width) x 14.0 (Height) cm
